Large

Large

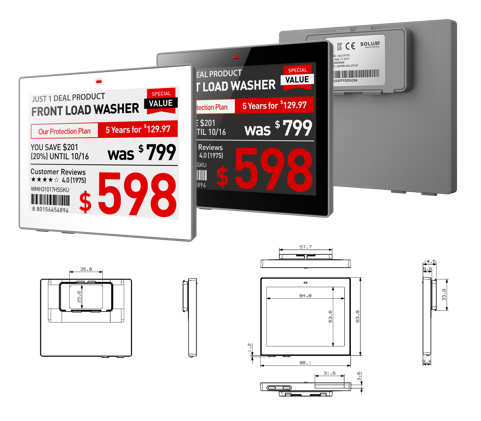

4.2″

MODELW:EL042H3WRA/WWW     B:EL042H3BRA/WWW
DIMENSION (mm)98.1 × 83.8 × 14.5
ACTIVE DISPLAY AREA (mm)84.8 × 63.6
RESOLUTION (Pixel)400 × 300
PIXEL DENSITY120 dpi
DISPLAY TECHNOLOGYFull Graphic E-ink Display
BEZEL COLORWhite or Black, Customizable Color(Optional)
PIXEL COLORSBW / BWR / BWY
VIEWING ANGLENearly 180˚
USABLE PAGESUp to 7 pages
OPERATING TEMPERATURE0 ~ 40℃
NFCFeliCa NFC Forum Type 3
WATERPROOFIP67
BUTTON2 Buttons
LED7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White)

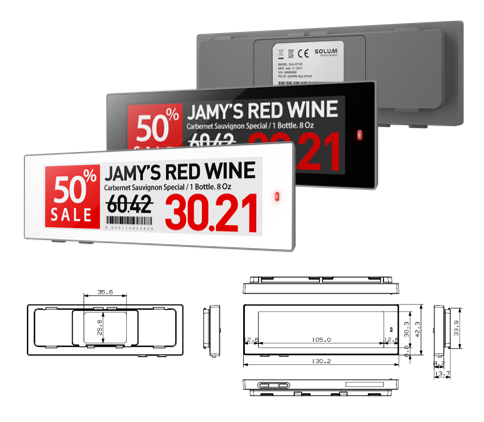

4.3″

MODELW:EL043H3WRA/WWW     B:EL043H3BRA/WWW
DIMENSION (mm)130.3 × 42.4 × 13.9
ACTIVE DISPLAY AREA (mm)105.4 × 30.7
RESOLUTION (Pixel)522 × 152
PIXEL DENSITY125 dpi
DISPLAY TECHNOLOGYFull Graphic E-ink Display
BEZEL COLORWhite or Black, Customizable Color(Optional)
PIXEL COLORSBW / BWR / BWY
VIEWING ANGLENearly 180˚
USABLE PAGESUp to 7 pages
OPERATING TEMPERATURE0 ~ 40℃
NFCFeliCa NFC Forum Type 3
WATERPROOFIP67
BUTTON2 Buttons
LED7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White)

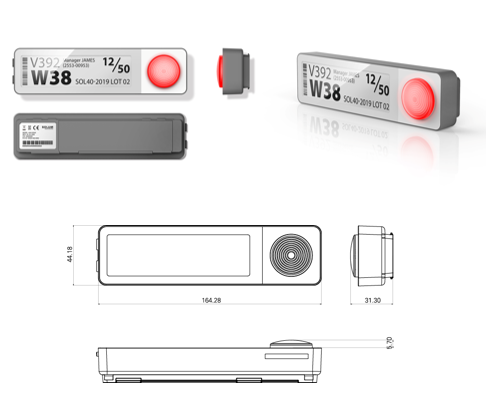

4.3″ LED Picking

MODELEU: EL043DWWRA/EEU
DIMENSION (mm)164.28 × 44.18 × 31.30
ACTIVE DISPLAY AREA (mm)105.4 × 30.7
RESOLUTION (Pixel)522 × 152
PIXEL DENSITY125 dpi
DISPLAY TECHNOLOGYFull Graphic E-ink Display
BEZEL COLORWhite
PIXEL COLORSBW / BWR
VIEWING ANGLENearly 180˚
USABLE PAGESDefault: 3pages, Optional: Up to 7 Pages
OPERATING TEMPERATURE0 ~ 40℃
NFCMIFARE® NFC Forum Type 2
WATERPROOFIP66
BUTTON3 Buttons
LED7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White)

6.0"

MODELW:EL116H3WRA/WWW     B:EL116H3BRA/WWW
DIMENSION (mm)192.0 × 268.0 × 21.9
ACTIVE DISPLAY AREA (mm)163.0 × 244.5
RESOLUTION (Pixel)640 × 960
PIXEL DENSITY100 dpi
DISPLAY TECHNOLOGYFull Graphic E-ink Display
BEZEL COLORWhite or Black, Customizable Color(Optional)
PIXEL COLORSBW / BWR
VIEWING ANGLENearly 180˚
USABLE PAGESUp to 3 pages
OPERATING TEMPERATURE0 ~ 40℃
NFCFeliCa NFC Forum Type 3
WATERPROOFIP67
BUTTON2 Buttons
LED7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White)

7.5"

MODELW:EL075H3WRA/WWW     B:EL075H3BRA/WWW
DIMENSION (mm)125.0 × 183.0 × 15.2
ACTIVE DISPLAY AREA (mm)163.2 × 97.9
RESOLUTION (Pixel)800 × 480
PIXEL DENSITY126 dpi
DISPLAY TECHNOLOGYFull Graphic E-ink Display
BEZEL COLORWhite or Black, Customizable Color(Optional)
PIXEL COLORSBW / BWR
VIEWING ANGLENearly 180˚
USABLE PAGESUp to 3 pages
OPERATING TEMPERATURE0 ~ 40℃
NFCFeliCa NFC Forum Type 3
WATERPROOFIP67
BUTTON2 Buttons
LED7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White)

11.6″

MODELW:EL060H3WRA/WWW     B:EL060H3BRA/WWW
DIMENSION (mm)133.0 × 109.0 × 14.7
ACTIVE DISPLAY AREA (mm)114.9 × 85.8
RESOLUTION (Pixel)600 × 448
PIXEL DENSITY132 dpi
DISPLAY TECHNOLOGYFull Graphic E-ink Display
BEZEL COLORWhite or Black, Customizable Color(Optional)
PIXEL COLORSBW / BWR / BWY
VIEWING ANGLENearly 180˚
USABLE PAGESUp to 3 pages
OPERATING TEMPERATURE0 ~ 40℃
NFCFeliCa NFC Forum Type 3
WATERPROOFIP67
BUTTON2 Buttons
LED7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White)
