Large

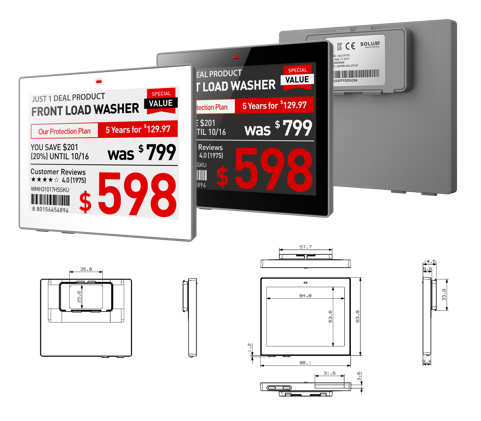

4.2″
| MODEL | W:EL042H3WRA/WWW B:EL042H3BRA/WWW |
| DIMENSION (mm) | 98.1 × 83.8 × 14.5 |
| ACTIVE DISPLAY AREA (mm) | 84.8 × 63.6 |
| RESOLUTION (Pixel) | 400 × 300 |
| PIXEL DENSITY | 120 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW / BWR / BWY |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 7 pages |
| OPERATING TEMPERATURE | 0 ~ 40℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |

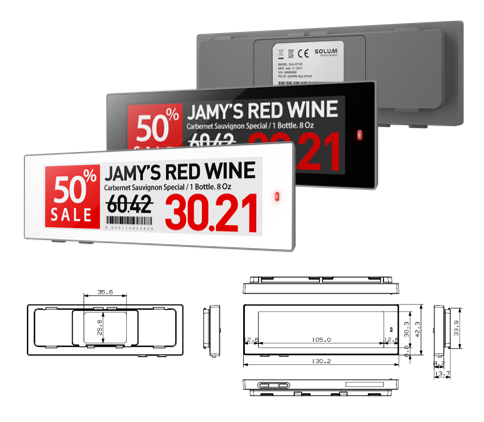

4.3″
| MODEL | W:EL043H3WRA/WWW B:EL043H3BRA/WWW |
| DIMENSION (mm) | 130.3 × 42.4 × 13.9 |
| ACTIVE DISPLAY AREA (mm) | 105.4 × 30.7 |
| RESOLUTION (Pixel) | 522 × 152 |
| PIXEL DENSITY | 125 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW / BWR / BWY |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 7 pages |
| OPERATING TEMPERATURE | 0 ~ 40℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |

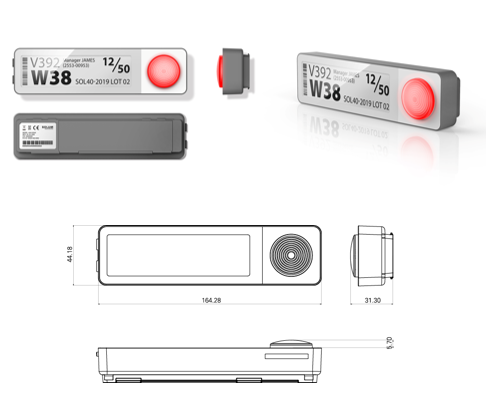

4.3″ LED Picking
| MODEL | EU: EL043DWWRA/EEU |
| DIMENSION (mm) | 164.28 × 44.18 × 31.30 |
| ACTIVE DISPLAY AREA (mm) | 105.4 × 30.7 |
| RESOLUTION (Pixel) | 522 × 152 |
| PIXEL DENSITY | 125 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White |
| PIXEL COLORS | BW / BWR |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Default: 3pages, Optional: Up to 7 Pages |
| OPERATING TEMPERATURE | 0 ~ 40℃ |
| NFC | MIFARE® NFC Forum Type 2 |
| WATERPROOF | IP66 |
| BUTTON | 3 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |
6.0"
| MODEL | W:EL116H3WRA/WWW B:EL116H3BRA/WWW |
| DIMENSION (mm) | 192.0 × 268.0 × 21.9 |
| ACTIVE DISPLAY AREA (mm) | 163.0 × 244.5 |
| RESOLUTION (Pixel) | 640 × 960 |
| PIXEL DENSITY | 100 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW / BWR |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 3 pages |
| OPERATING TEMPERATURE | 0 ~ 40℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |

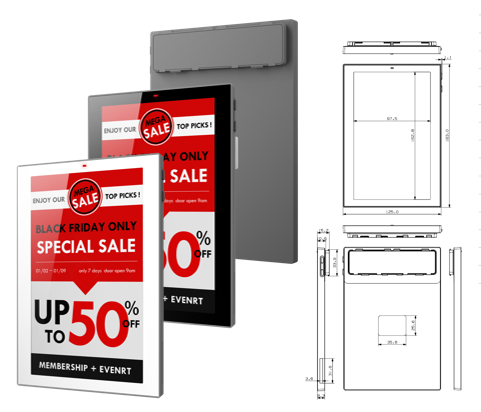

7.5"
| MODEL | W:EL075H3WRA/WWW B:EL075H3BRA/WWW |
| DIMENSION (mm) | 125.0 × 183.0 × 15.2 |
| ACTIVE DISPLAY AREA (mm) | 163.2 × 97.9 |
| RESOLUTION (Pixel) | 800 × 480 |
| PIXEL DENSITY | 126 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW / BWR |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 3 pages |
| OPERATING TEMPERATURE | 0 ~ 40℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |
11.6″
| MODEL | W:EL060H3WRA/WWW B:EL060H3BRA/WWW |
| DIMENSION (mm) | 133.0 × 109.0 × 14.7 |
| ACTIVE DISPLAY AREA (mm) | 114.9 × 85.8 |
| RESOLUTION (Pixel) | 600 × 448 |
| PIXEL DENSITY | 132 dpi |
| DISPLAY TECHNOLOGY | Full Graphic E-ink Display |
| BEZEL COLOR | White or Black, Customizable Color(Optional) |
| PIXEL COLORS | BW / BWR / BWY |
| VIEWING ANGLE | Nearly 180˚ |
| USABLE PAGES | Up to 3 pages |
| OPERATING TEMPERATURE | 0 ~ 40℃ |
| NFC | FeliCa NFC Forum Type 3 |
| WATERPROOF | IP67 |
| BUTTON | 2 Buttons |
| LED | 7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White) |
