Size

Color

Software

Accessories

Small

Medium

Large

Small

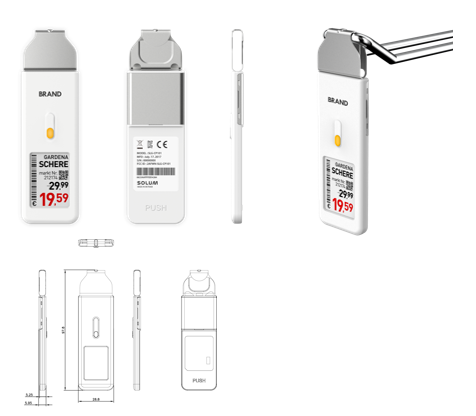

1.3″ peghook

MODEL	EL013H2WRD/WWW, EL013H2WYD/WWW
DIMENSION (mm)	97.8*28.8*5.95
ACTIVE DISPLAY AREA (mm)	27*19.44
RESOLUTION (Pixel)	200*144
PIXEL DENSITY	189dpi
DISPLAY TECHNOLOGY	Full Graphic E-ink Display
BEZEL COLOR	White
PIXEL COLORS	BWR / BWY
VIEWING ANGLE	Nearly 180˚
USABLE PAGES	7pages
OPERATING TEMPERATURE	BWR(0 ~ 30℃), BWY(10 ~ 30℃)
NFC	None
WATERPROOF	No
BUTTON	1 button
LED	3color(Red/Green/Yellow)

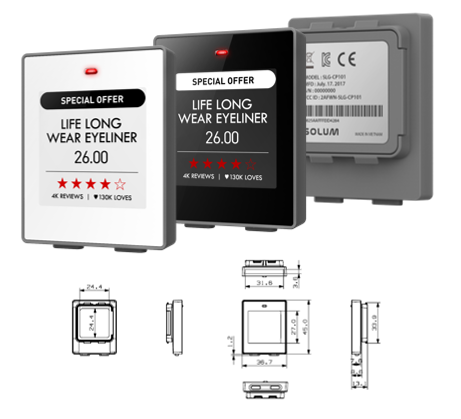

1.6″

MODEL	W:EL016H3WRA/WWW     B:EL016H3BRA/WWW
DIMENSION (mm)	36.7 × 45.0 × 13.1
ACTIVE DISPLAY AREA (mm)	27.0 × 27.0
RESOLUTION (Pixel)	200 × 200
PIXEL DENSITY	184 dpi
DISPLAY TECHNOLOGY	Full Graphic E-ink Display
BEZEL COLOR	White or Black, Customizable Color(Optional)
PIXEL COLORS	BW / BWR / BWY
VIEWING ANGLE	Nearly 180˚
USABLE PAGES	Up to 7 pages
OPERATING TEMPERATURE	0 ~ 40℃
NFC	FeliCa NFC Forum Type 3
WATERPROOF	IP67
BUTTON	2 Buttons
LED	7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White)

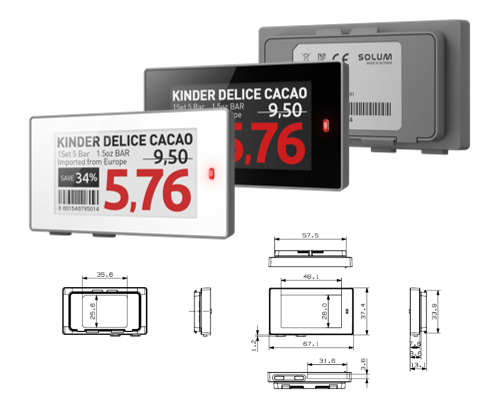

2.2″

MODEL	W:EL022H3WRA/WWW     B:EL022H3BRA/WWW
DIMENSION (mm)	67.1 × 37.4 × 13.1
ACTIVE DISPLAY AREA (mm)	48.1 × 26.0
RESOLUTION (Pixel)	296 × 160
PIXEL DENSITY	156 dpi
DISPLAY TECHNOLOGY	Full Graphic E-ink Display
BEZEL COLOR	White or Black, Customizable Color(Optional)
PIXEL COLORS	BW / BWR / BWY
VIEWING ANGLE	Nearly 180˚
USABLE PAGES	Up to 7 pages
OPERATING TEMPERATURE	0 ~ 40℃
NFC	FeliCa NFC Forum Type 3
WATERPROOF	IP67
BUTTON	2 Buttons
LED	7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White)

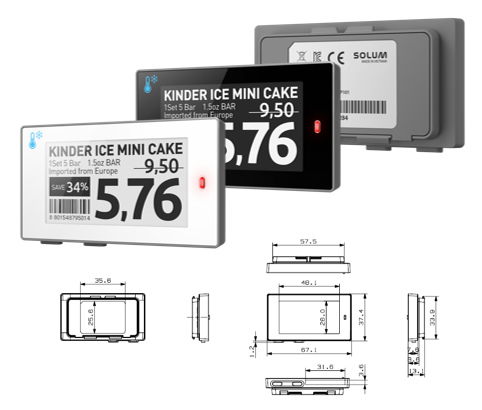

2.2″ Freezer

MODEL	W:ELF22H3WMA/WWW     B:ELF22H3BMA/WWW
DIMENSION (mm)	67.1 × 37.4 × 13.1
ACTIVE DISPLAY AREA (mm)	48.1 × 26.0
RESOLUTION (Pixel)	296 × 160
PIXEL DENSITY	156 dpi
DISPLAY TECHNOLOGY	Full Graphic E-ink Display
BEZEL COLOR	White or Black, Customizable Color(Optional)
PIXEL COLORS	BW
VIEWING ANGLE	Nearly 180˚
USABLE PAGES	Up to 7 pages
OPERATING TEMPERATURE	-25 ~ 0℃
NFC	FeliCa NFC Forum Type 3
WATERPROOF	IP67
BUTTON	2 Buttons
LED	7 Colors (Red/Green/Blue/Yellow/Cyan/Magenta/White)
